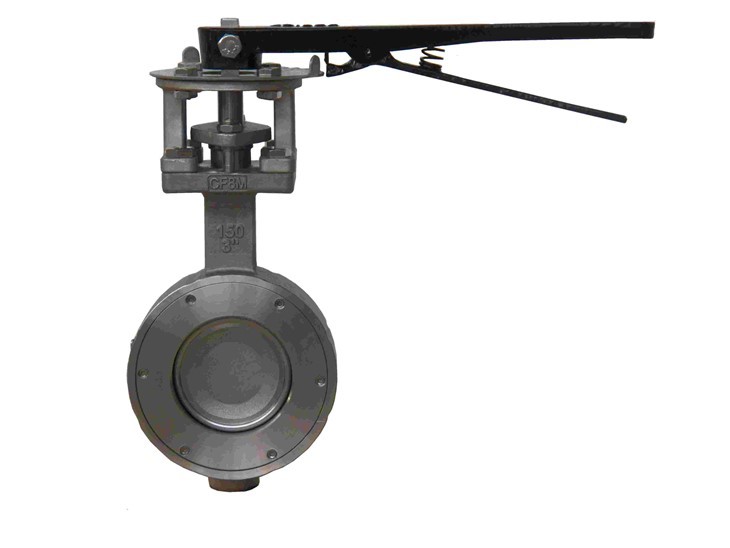

High-Performance Soft Sealing Butterfly Valve

◆ To provide a bidirectional 1:1 zero leakage function, the new lotoke soft-seal high-performance butterfly valve uses a double eccentric design. When the eccentric spherical valve plate approaches the valve seat, it creates a cam-like action that allows it to be pulled away from the seat without applying too much force, preventing the valve plate from making contact with the seat. This phenomenon diminishes the wear of the valve seat, lowers the working torque, and decreases the deformation phenomena. When the valve is closed, the valve plate's rotating motion is converted into a linear motion by this cam-like action, which essentially pushes the valve plate against the valve seat. The H line contact between the valve plate and the valve seat is in touch with the

◆The precise and stable placement of the valve seat is guaranteed by the valve seat positioner and the valve body groove design. To ensure the pipe road seal and the maximum tightening force of the valve seat, the full-face valve seat positioner is linked to the valve body in a balanced manner using high-strength bolts.


◆ The valve seat itself has the ability to self-adjust to medium temperature changes and pipeline pressure, thus minimizing the wear of the valve seat;

◆ Design: API 609

◆ Face to face: API609 / ISO5752-20 / ISO5752-13 / DIN F4 /EN558

◆ Flange end: ASME B16.5 / ASME B16.47 / EN1092-1 / GOST 12815 / Gost 33259 /MSS-SP44

◆ Butt-welding end: ASME B16.25

◆ Test: API598

◆ Fire safe: API607 / API6FA

◆ Size: 2"~64"(DN100~DN1600)

◆ Class:150Lb~1500Lb / PN6~PN250

◆ Temperature: -60 degree to +180 degree

◆ Body: Carbon steel(WCB,LCB,WC6,WC9,C5) /

◆ Stainless steel(CF8,CF8M,CF3,CF3M) /

◆ Duplex stainless steel(4A,5A,6A) /

◆ Hastelloy alloy(N-12MV,CW-12MW,CW-2M) /

◆ Inconel alloy(CY-40,CW-6MC) /

◆ Monel alloy(M35-1) / Monel 400

◆ Aluminium bronze alloy(C95400,C95500,C95800,AB2C)

◆ Disc: Stainless steel(CF8,CF8M,CF3,CF3M) /

◆ Duplex stainless steel(4A,5A,6A)Hastelloy alloy(N-12MV,CW-12MW,CW-2M)/

◆ Inconel alloy(CY-40,CW-6MC) /

◆ Monel alloy(M35-1) /

◆ Aluminium bronze alloy(C95400,C95500,C95800,AB2C)

◆ Stem: SS420 / 17-4PH / F53 / XM-19 / Monel-K500 / Inconel-625 / Hastelloy-276
